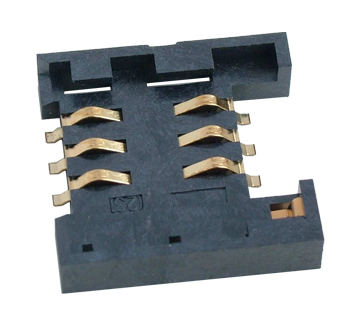

ADA-SIM023, SIM card connector, With holder type, with detective switch
General Characteristics:
Switch: normally open
Dimension: 17.1x16.7x3.7mm (LxWxH)
Weight: 4.5g (approx.)
Durability: 10000 cycles
Mechanical Characteristics:
Insulation material: Thermoplastic, UL 94V-0
Electrical Characteristics:
Number of contacts: 6 pin
Contact resistance: ≤ 200MΩ
Insulation resistance: 1000MΩ/500VDC
Solderability:
IR reflow: 260 degrees centigrade, 8-10 sec max.
Hand soldering: 330 degrees centigrade, 3 sec max.
Environment characteristics:
Operating temperature: -2585
Operating humidity: 10%~95% RH
Storage temperature: -25~+85 degrees centigrade
Storage humidity: 10%~95% RH
