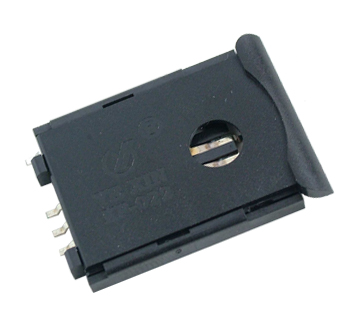

ADA-SIM022, SIM card connector, With drawer type, w/o detective switch

General Characteristics:
  Dimension: 29.6x21.26x2.86mm (LxWxH)
  Weight: 1.32g (approx.)
  Durability: 10000 cycles

Mechanical Characteristics:
Insulation material: Thermoplastic, UL 94V-0

Electrical Characteristics:
  Number of contacts: 6 pin or 8 pin (optional)
  Contact resistance: ≤ 60MΩ
  Insulation resistance: 1000MΩ/500VDC

Solderability:
IR reflow: 260 degrees centigrade, 8-10 sec max.
Hand soldering: 330 degrees centigrade, 3 sec max.

Environment characteristics:
  Operating temperature: -25~+85 degrees centigrade
  Operating humidity: 10%~95% RH
  Storage temperature: -25~+85 degrees centigrade
  Storage humidity: 10%~95% RH
