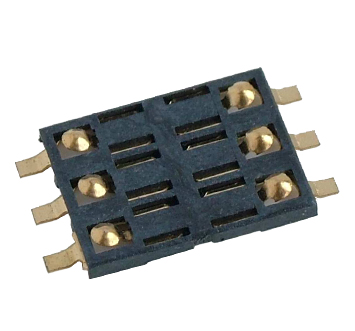

ADA-SIM021, SIM card connector, Mini compact type

General Characteristics:

Dimension: 10.1x7.66x1.0mm (LxWxH)
Weight: 0.22g (approx.)
Durability: 10000 cycles

Mechanical Characteristics:

Insulation material: Thermoplastic, UL 94V-0

Electrical Characteristics:
  Number of contacts: 6 pin
  Contact resistance: ≤ 200MΩ
  Insulation resistance: 1000MΩ/500VDC

Solderability:
IR reflow: 230 degrees centigrade, 8-10 sec max.
Hand soldering: 330 degrees centigrade, 3 sec max.

Environment characteristics:
  Operating temperature: -20~+85 degrees centigrade
  Operating humidity: 10%~95% RH
  Storage temperature: -40~+85 degrees centigrade
  Storage humidity: 10%~95% RH
