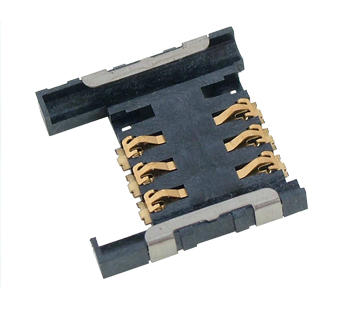

ADA-SIM017, SIM card connector, open holder type

General Characteristics:

  Dimension: 15.7x16.2x28mm (LxWxH)
  Weight: 0.5g (approx.)
  Durability: 10000 cycles

Mechanical Characteristics:

  Insulation material: Thermoplastic, UL 94V-0
  Electrical Characteristics
  Number of contacts: 6 pin
  Contact resistance: ≤ 200MΩ
  Insulation resistance: 1000MΩ/500VDC

Solderability:

  IR reflow: 260 degrees centigrade, 8-10 sec max.
  Hand soldering: 330 degrees centigrade, 3 sec max.

Environment characteristics:

  Operating temperature: -20~+85 degrees centigrade
  Operating humidity: 10%~95% RH
  Storage temperature: -40~+85 degrees centigrade
  Storage humidity: 10%~95% RH
